Mastering Time Delay Relays and Sequencers

    Time delay relays and sequencers are key components for timed and sequenced control in automated electrical systems. A time delay relay switches circuit contacts after a set delay instead of instant actuation. A sequencer manages multiple outputs in a predefined order for multi‑stage automation tasks.

How Does a Bimetallic Thermal TDR Work?

    Thermal TDRs use a bimetallic strip and heater, offering durability where electronic timers fail.

    Step 1: Power energizes a heater near the bimetallic strip.

    Step 2: The strip bends as metals expand at different rates.

    Step 3: Bending closes the contacts.

    Step 4: Delay equals heating time. Cooling resets the relay.

    This mechanism resists voltage spikes, EMI, and extreme temperatures.



Why Use a Sequencer Instead of Multiple TDRs?



Feature	Multiple TDRs	Dedicated Sequencer
Wiring	Complex	Simple
Accuracy	±10–15%	±0.5–5%
Failure points	Many	Few
Cost (3+ stages)	Higher	Lower





Typical Applications

    Time delay relays: Lighting timing, fan delay, single motor delayed start.

    Sequencers: Staggered motor starting, multi‑stage equipment control, assembly line sequential actuation.



KSD Series Overview

Model	Type	Key Feature

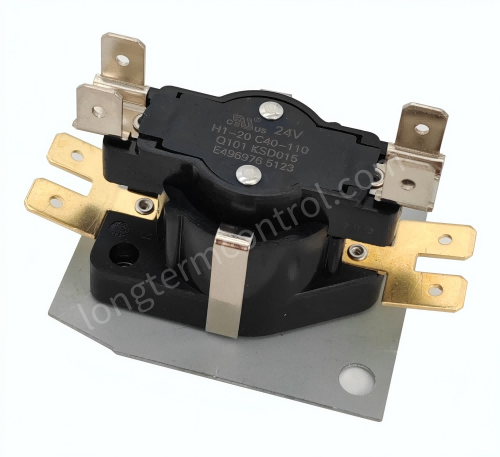

KSD015	TDR	Compact thermal delya
KSD015W	TDR	HVAC wiring
KSD016	TDR	Extended range
KSD016W	TDR	HVAC variant
KSD016X	TDR/Sequencer	Multi-function
KSD030	Sequencer	3-stage, ±0.5% accuracy
KSD031	Sequencer	4-stage
KSD032	Sequencer	Programmable
KSD033	Sequencer	High-current



    All models carry UL E496976 certification.



KSD030–KSD033 Sequencer Specs

    1. Repeat accuracy: ±0.5%

    2. Time delay accuracy: ±5%

    3. Temp range: -10°C to +60°C

    4. Functions: Delay-on-Make, Delay-on-Break, Interval, Recycling Flasher

    5. Outputs: Up to 4 stages



Global Market Outlook

    The time delay relay market is projected to grow from US$594M (2025) to US$736M (2031) , CAGR 3.6%. Industrial automation segment: US$296M (2024) to US$366M (2031).



FAQ

    Q: Delay-on-Make vs Delay-on-Break?

    DOM: timing starts when power applied. DOB: contacts close immediately, timing starts when power removed.

    Q: Can a sequencer replace multiple TDRs?

    Yes, for 3+ stages. For 1–2 stages, individual TDRs are fine.

    Q: Which model for HVAC compressor protection?

    KSD015 or KSD016 for 3–5 minute delays. For multi-stage HVAC, use KSD030/KSD031.

    Q: Compatible with 24V AC control?

    Yes. Check datasheet for voltage range.

    Q: Expected operational life?

    100,000 mechanical operations under rated load.



About the Manufacturer

    We specialize in bimetallic thermal control devices, including the KSD series. UL E496976 certified. ISO 9001. For datasheets or OEM inquiries, contact us.
